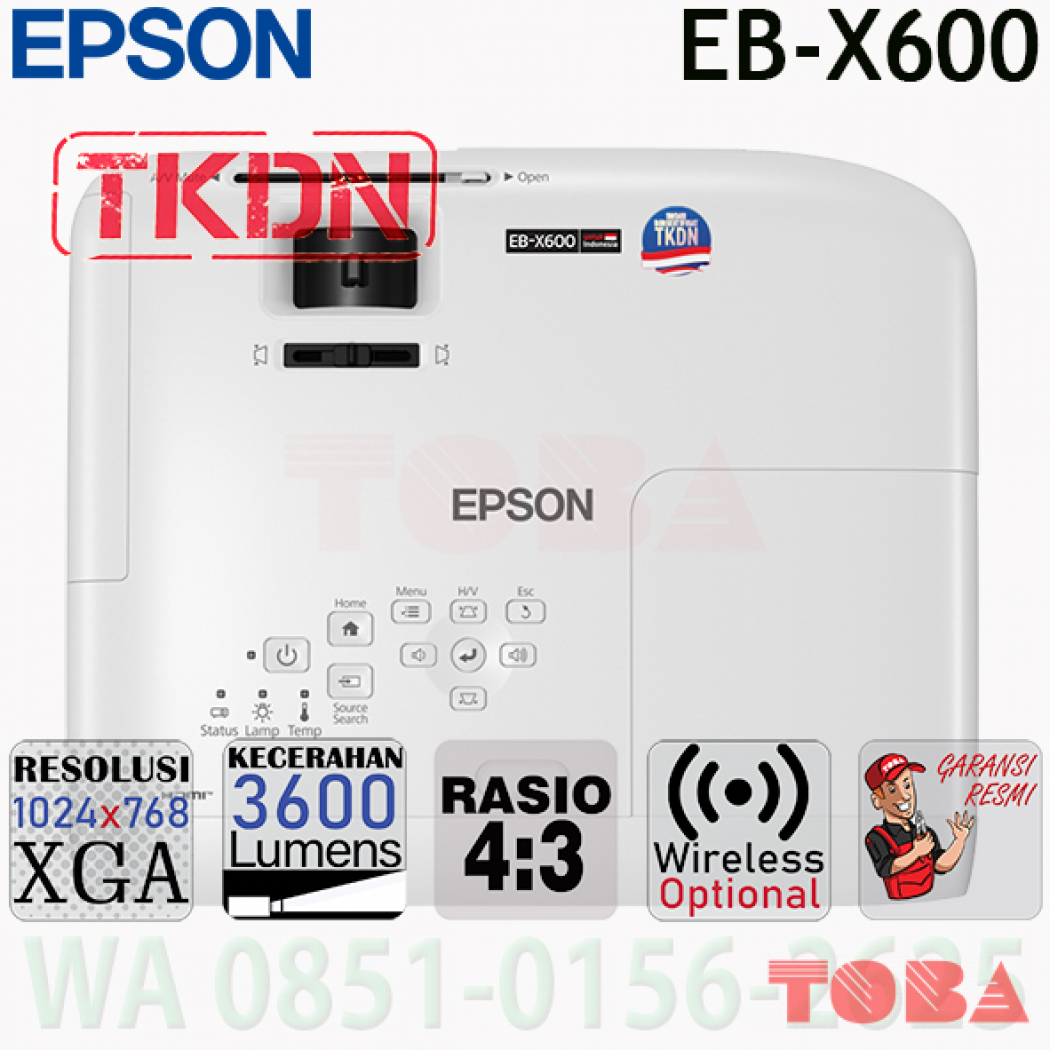

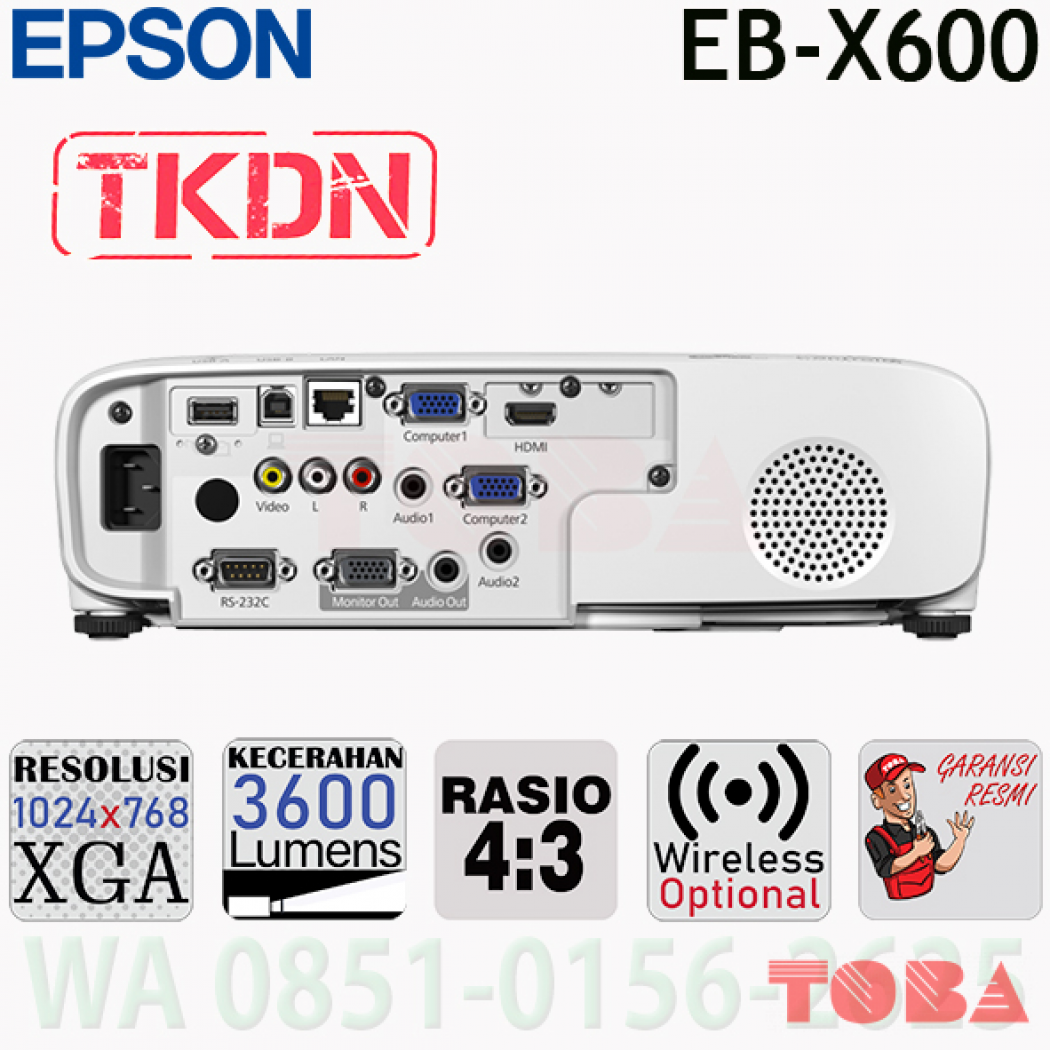

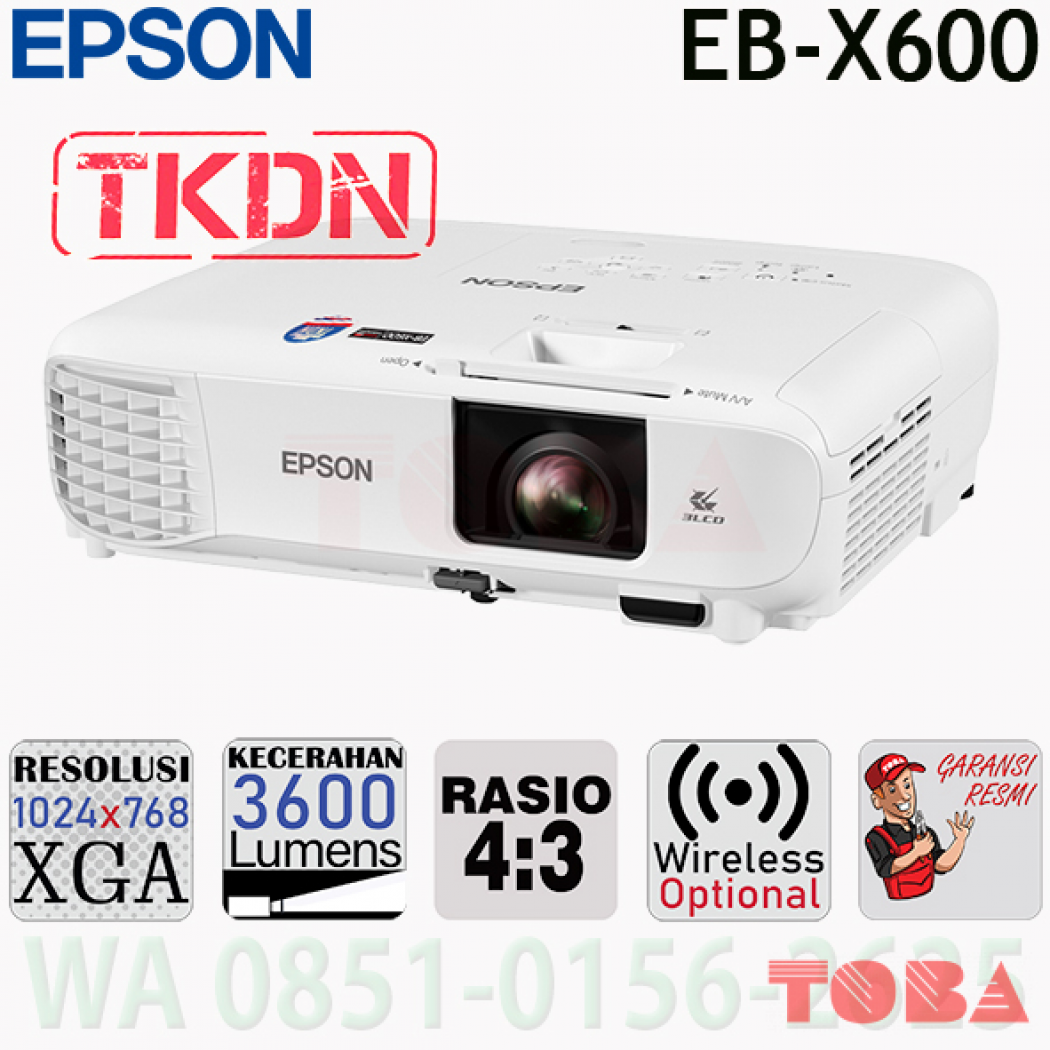

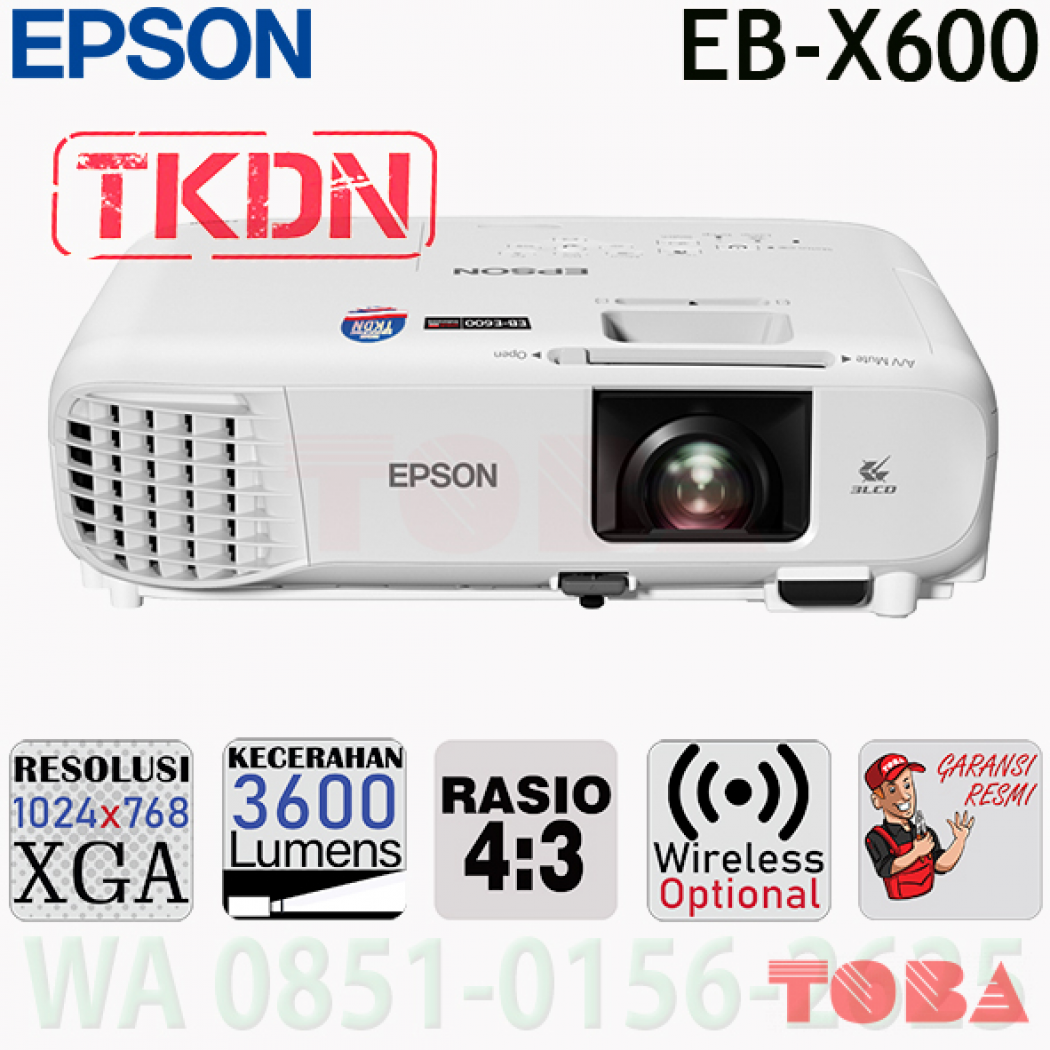

LCD PROYEKTOR EPSON EB-X600 XGA 3600 ANSI LUMEN - TKDN

Projection Technology: RGB liquid crystal shutter projection system (3LCD)
Brightness1:
White Light Output (Normal/Eco): 3,600 lm / 2,400 lm
Colour Light Output: 3,600 lm

Konektivitas:
Antarmuka USB:
USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Jaringan:
Wireless: Optional (ELPAP11)
Wired LAN : 1 (RJ45)
Analog Input:
Composite: 1 (RCA)
D-Sub 15pin: 2
Digital Input:
HDMI: 1
Analog Output:
Monitor Out : 1
Audio Input:
2 RCA (White x1; Red x 1): 1
Stereo Mini : 2
Audio Output:
Stereo Mini : 1
Control I/O:
RS232C : 1

Contrast Ratio:
16,000:1
Screen Size (Projected Distance):
Screen Size:
Wide: 30” to 300” [0.89 to 9.12 m]
Tele: 30” to 300” [1.07 to 10.95 m]
Standard Size: 60" screen 1.8 - 2.17m

Geometric Correction:
Vertical/Horizontal Keystone:
±30° / ±30° (Auto Vertical Keystone only)
Quick Corner: Yes

Operating Temperature:
Low Altitude: 5 – 40 °C
High Altitude: 5 – 35 °C
(20% – 80% Humidity, No Condensation)

Operating Altitude:
0 – 3,048 m

Start-Up Period:
Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:
Instant Off
Direct Power On/Off: Yes

Berat: Approx. 2.7 kg
Air Filter:
Maintenance Cycle: 6,000 / 12,000 hours*3
Fan Noise:
Fan Noise (Normal / Eco): 37dB / 28dB

Daya:
Power Supply Voltage:
100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220-240V):
Lamp On (Normal/Eco):
327W / 225W
Networked Standby: 2.0W
Energy Saving: 0.3W

Dimension Excluding Feet (W x H x D): 302 x 87 x 249 mm
Specifications of Main Parts:
LCD: Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)
Light Source: Type: 210W UHE
Lamp Life (Normal / Eco): 6,000 / 12,000 hours
Aspect Ratio: 4:3
Projection Lens: F-Number: 1.49 – 1.72
Type: Optical Zoom (Manual) / Focus (Manual)
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
Throw Ratio1.48 – 1.77 (Wide to Tele)

Optional Wireless LAN Specification:
Supported Speed for Each mode :
IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2

Supported Mode:
Infrastructure, Access Point
Wireless LAN Security:
Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)
