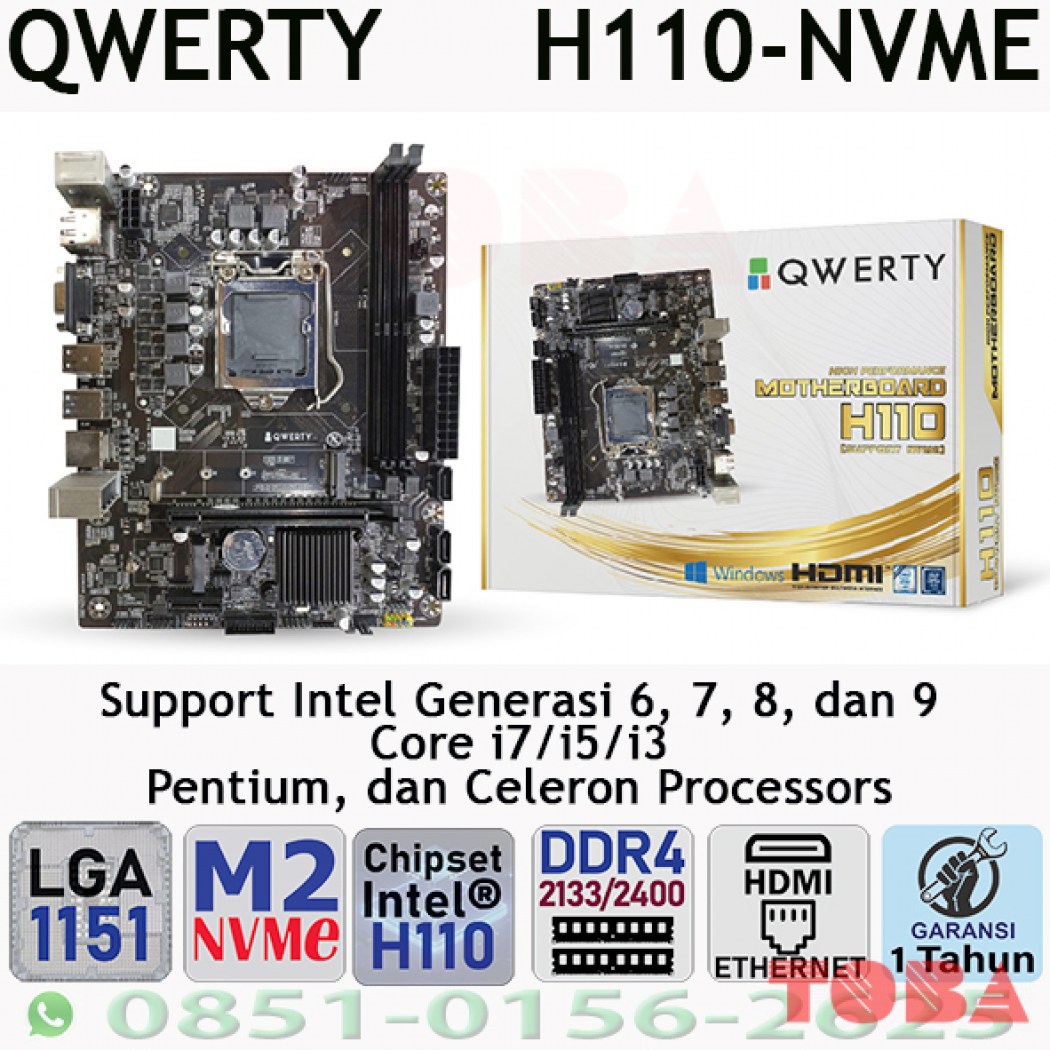

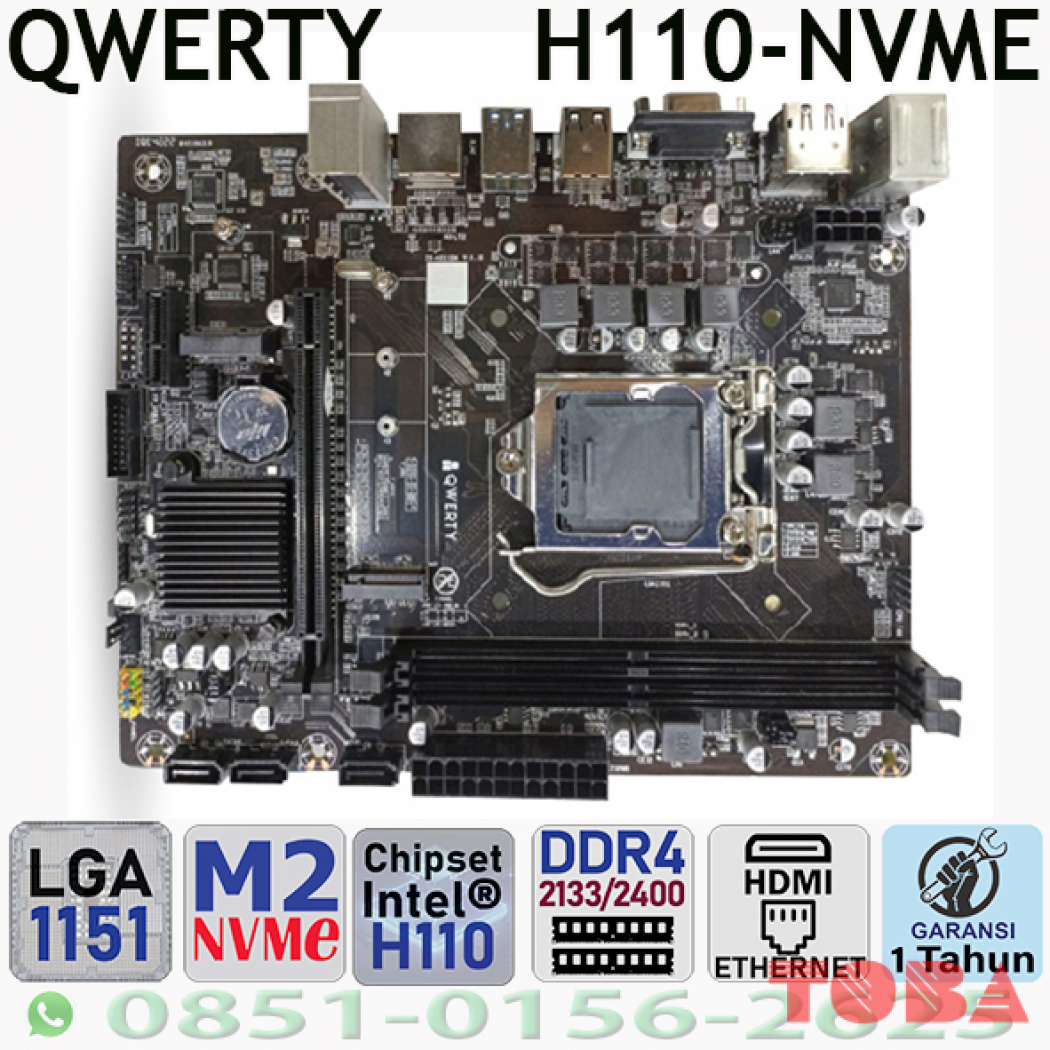

MAINBOARD QUERTY H110 NMVE LGA1151 - MNB-QWE-H110NV

Spesifikasi dari Mainboard QWERTY H110 NVME LGA 1151:
Socket: LGA 1151
Processor: Dukungan untuk Intel 6th, 7th, 8th, dan 9th Generation Core i7/i5/i3, Pentium, dan Celeron Processors
Chipset: Intel H110
Memory: Dukungan 2 * DDR4 2133/2400MHz DIMM, Dual channel memory architecture
Graphic: Integrated Graphics Processor - Intel HD Graphics support, Multi-VGA output support (HDMI / VGA ports)
Slots: 1 x PCIe 3.0/2.0 x16 slot
Storage: 4 x SATA3.0 6Gb/s Ports
LAN: Realtek Chip, 1 x 100M (Optional 1000M)
Audio: Realtek Chip, ALC 662 6-channel audio
USB Ports : 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board), 6 * USB 2.0 port (4 at back panel, black, 2 at mid-board)
Back Panel I/O: 1 x VGA Port, 1 x HDMI Port, 1 x LAN (RJ45) Port, 2 x USB 3.1 Gen 1 Ports (Blue), 4 x USB 2.0 Ports, 3 x flexible audio jacks
Internal I/O: 1 x USB 3.1 Gen 1 connector (19pin), supports 2USB 3.1 Gen 1 ports, 1 x USB 2.0 connector, supports 2USB 2.0 ports, 4 x SATA 6Gb/s Ports, 2 x 4-pin CPU_FAN/SYS_FAN connectors, 1 x 24-pin ATX power connector, 1 x 4-pin 12V ATX Power connectors, 1 x F_Audio connector, 1 x Internal Speaker connector, 1 x F_Panel connector
Dimension: 195 x 168 mm

Mainboard ini dirancang untuk mendukung performa tinggi dan dukungan untuk berbagai perangkat keras modern.
