Price
Rp1.180.000,-

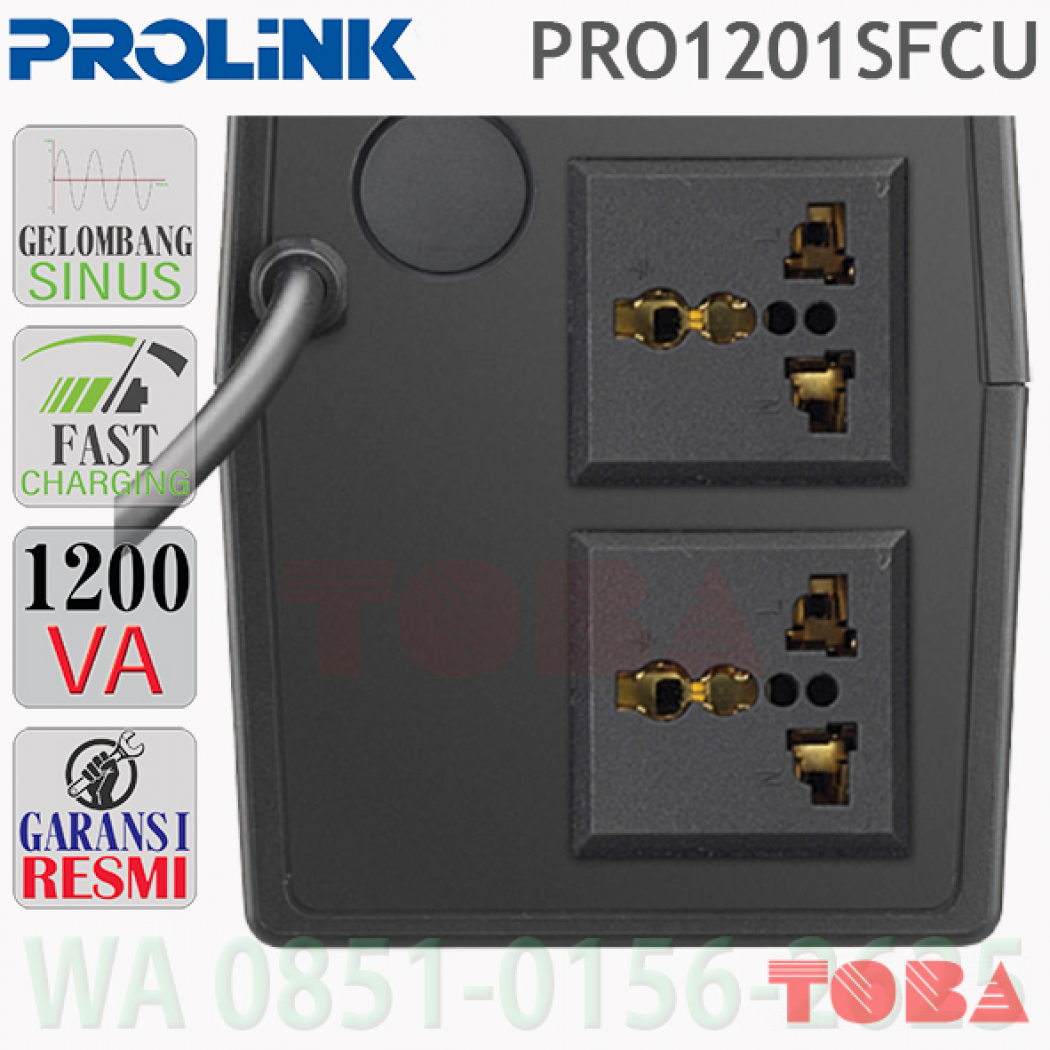

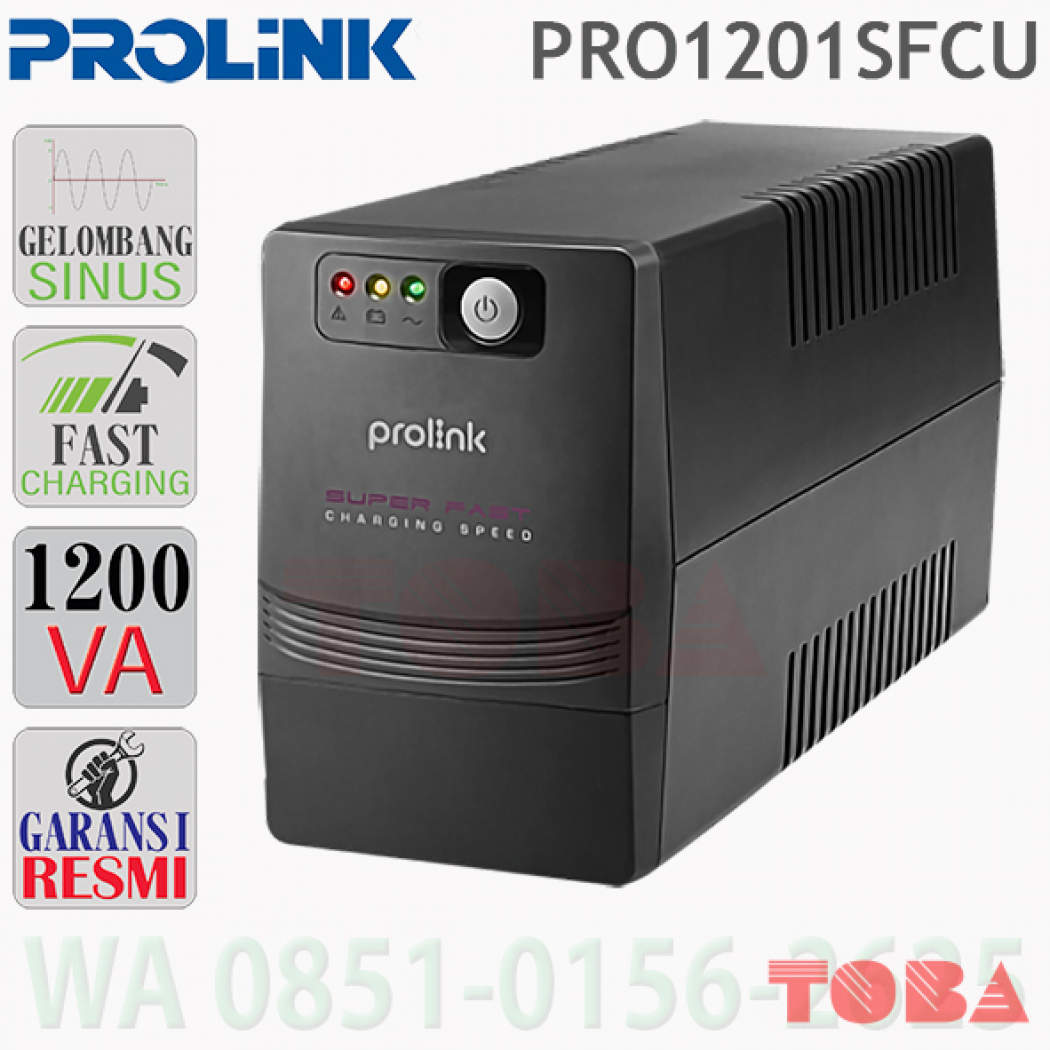

PRO1201SFC/SFCU
Capacity 1200VA
Input Voltage Range 140 - 300V ± 5%
Frequency 50Hz/60Hz (Auto-sensing)
Phase Single + GND
Output Voltage Range 230VAC +12% -14%
Battery Mode 230VAC +10% -10%
Frequency 50Hz ± 1% (Battery Mode)
Waveform - Simulated Sine Wave (Battery Mode)
- Sine Wave (AC Mode)
Transfer Time 2ms typical
Battery Type 12V/8.2AH - 2pcs
Backup Time 8 - 30 minutes depending on load
Recharge Time 2 - 4 hours recover to 90% capacity
Protection / Monitoring Short Circuit Protection Yes (Line Mode and Battery Mode)
Surge Protection Yes
Alarm Audible & Visual
UPS Protection Load auto sensing and abnormal protection
Overload Protection - Line mode : 100 - 120% 5 mins change to fault mode >120% change to fault mode shutdown immediately
- Battery mode : 100 - 110% alarm & shutdown in 10 secs >120% shutdown immediately
Intelligent Battery Management Prevent overcharging of battery
Protect battery and prolong battery life
Interface Interface* RJ11
USB Connector* AC fault, battery low, shutdown UPS
General Software Support Windows® 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix, and Mac
Noise Level Temperature 0°C - 40°C
Humidity 0 - 90%
Power Factor Up to 0.7
Built in AVR TRUE Full AVR (3 steps)
Physical Dimension (mm) D x W × H 320*130*182mm (product only)
390*192*275mm (with box)
Net Weight (kgs) 8.6KG (product only)
9KG(with box)
Package Content 1 x PROLiNK PRO1200SFC/SFCU Line Interactive UPS
1 x Quick Installation Guide (QIG)
Capacity 1200VA
Input Voltage Range 140 - 300V ± 5%
Frequency 50Hz/60Hz (Auto-sensing)
Phase Single + GND
Output Voltage Range 230VAC +12% -14%
Battery Mode 230VAC +10% -10%
Frequency 50Hz ± 1% (Battery Mode)
Waveform - Simulated Sine Wave (Battery Mode)
- Sine Wave (AC Mode)
Transfer Time 2ms typical
Battery Type 12V/8.2AH - 2pcs
Backup Time 8 - 30 minutes depending on load
Recharge Time 2 - 4 hours recover to 90% capacity
Protection / Monitoring Short Circuit Protection Yes (Line Mode and Battery Mode)
Surge Protection Yes
Alarm Audible & Visual
UPS Protection Load auto sensing and abnormal protection
Overload Protection - Line mode : 100 - 120% 5 mins change to fault mode >120% change to fault mode shutdown immediately
- Battery mode : 100 - 110% alarm & shutdown in 10 secs >120% shutdown immediately
Intelligent Battery Management Prevent overcharging of battery
Protect battery and prolong battery life
Interface Interface* RJ11
USB Connector* AC fault, battery low, shutdown UPS
General Software Support Windows® 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix, and Mac
Noise Level Temperature 0°C - 40°C
Humidity 0 - 90%
Power Factor Up to 0.7
Built in AVR TRUE Full AVR (3 steps)
Physical Dimension (mm) D x W × H 320*130*182mm (product only)
390*192*275mm (with box)
Net Weight (kgs) 8.6KG (product only)
9KG(with box)
Package Content 1 x PROLiNK PRO1200SFC/SFCU Line Interactive UPS
1 x Quick Installation Guide (QIG)
